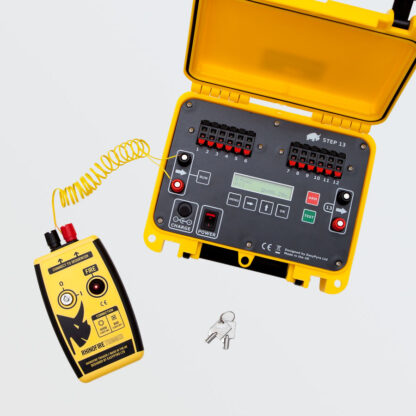

Original RhinoFire Pyro Sequencer
$608.00 ex VAT
Our RhinoFire professional firework or pyrotechnic sequencer is a rugged pyro sequencer designed to create amazing timed SFX.
Chases, sweeps, bullet hits or any sequenced pyro that requires precise timing can be easily controlled.
Our wired pyro sequencer can be used alone or as an ideal addition to an existing pyro firing system.
The sequencer is a professional, rugged device while remaining extremely simple to program and use.
Designed by EasyPyro Ltd and made in the UK.
Functionality
- Stepper Mode
Step to the next cue on each trigger input pulse. - Same Interval Mode
Set the same time interval between all cues.
Set the same time interval between groups of cues
(Fire 2 x 6 Cues, 3 x 4 Cues, 6 x 2 Cues etc) - Different Interval Mode
Set a different interval between cues. - Clock Mode
Set any cue to fire at any time according to an internal clock. - Sweep Mode
Fire sweeps / chases back and forth across multiple units. - Memory
Easily Save, Recall and Edit 10 shows in each mode. - Expandable
Connect multiple units together in any mode
Features
- Extremely strong and rugged
- Waterproof when lid closed.
- Easy to use.
- Lid can be closed on igniter wires.
- Menu in 5 languages (English, Spanish, Italian, German, French)
- Internal 12 Volt Lead Acid rechargeable battery.
- 12 Volt @ 6 Amp per cue.
- Short circuit protected outputs.
- International battery charger supplied (UK, EURO, USA plugs).
- Backlit LCD screen.
- Proven low temperature operation.
- Full Self Test and Diagnostic for maximum safety and reliability.
- Set time intervals from 10ms (0.01s) to 9m59.99s.
- Battery meter.
- 3 – 24v trigger input pulse (compatible with almost any firing system).
- Designed by EasyPyro Ltd and made in the UK.
Specification
| Size | 225 x 190 x 100 mm |
| Weight | 1.5 Kg |
| Material | Polypropylene Seahorse Armoured Case |
| Cues | 12 |
| Power | 12V Lead Acid battery |
| Output voltage | 12 |
| Output current | 6A per cue |
| Timing Resolutions | 10mS |
| Trigger | Voltage Input |
| Charger | international Smart Battery Charger (UK, EU, USA adatpers) |
Features
- Flexible operating modes
Almost any effect or timing chain can be created. - Well built and rugged
Housed in a Seahorse waterproof case with sealed aluminium front panel. - Incredibly reliable and easy to use
The evolution of our well known RhinoFire Sequencers. - Control solenoid valves
12V output, diode protection and selectable fire duration for solenoids. - Lid can be closed on wires
Slots milled in side of case for igniter wires. - Multi function Trigger Input
Selectable Current Sense or Contact Closure input. - Menu system in 5 languages
English, Spanish, Italian, German, French. - Internal SLA batteries
12V output as standard. No bulky external batteries required. - Battery meter
Shows voltage and % at startup. - Modular spring terminals
Modular terminals allows them to be easily replaced. - Fully protected electronics
Intelligent protection stops damage when firing into dead shorts. - Full Self Test and Diagnostic
For maximum safety and reliability. - Made in the UK
Designed and made in the UK and backed by 1st class support
